WIRE SIEVES – SCREEN CLOTHS

STANDARD ASSORTMENT FOR MINING INDUSTRY

Square and rectangular aperture

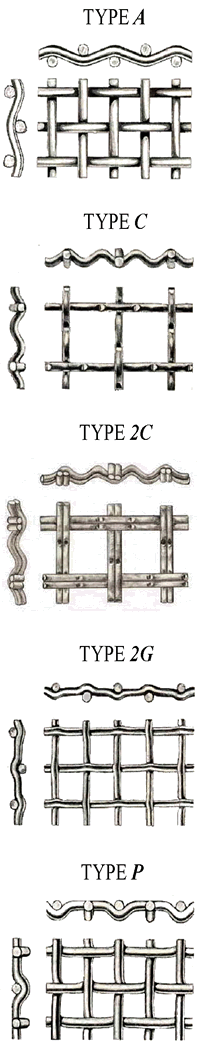

Materials according to DIN.17223 and DIN.17224
Hooked and un-hooked

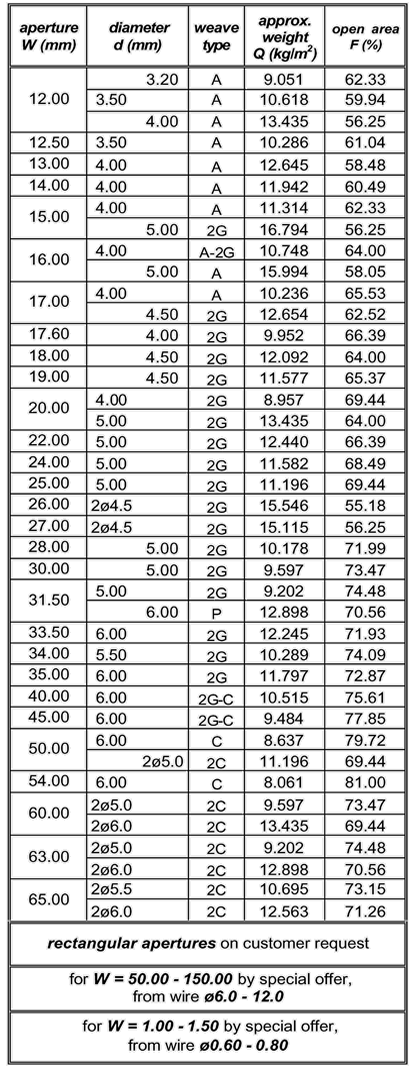

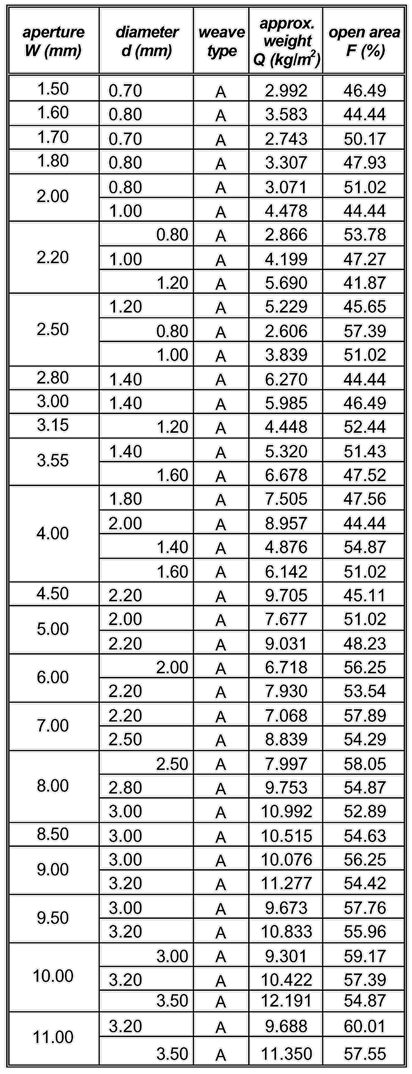

W – aperture (mm)
d – wire diameter(mm)
t – pitch (mm)
Q – weight (kg/m²)
F – open area (%)
t=W+d

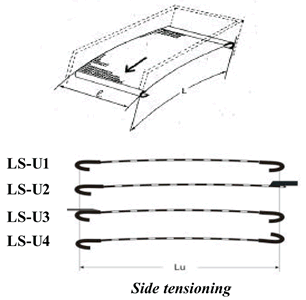

hook LS/α type – sheath metal and screen cloth folded by given angle α=30°- 90°

hook LS/180° x b type - sheath metal and screen cloth folded by 180° and given gap b

hook LS/180° type – sheath metal and screen cloth folded by 180°

other types by drawing / customer request

All types of hooks (LS/α, LS/180° x b, LS/180°) are formed:

for apertures W from 1,5 - 3,5 mm, sheath metal is fixed by applying spot welding technique

on customer request, sheath metal is fixed with rivets on distance of 200 mm

	hook LS/α type – sheath metal and screen cloth folded by given angle α=30°- 90°
	hook LS/180° x b type - sheath metal and screen cloth folded by 180° and given gap b
	hook LS/180° type – sheath metal and screen cloth folded by 180° other types by drawing / customer request

SIEVES - MESHES FOR KILN WATTLES

Wire sieves and meshes with square and rectangular aperture
Materials: Stainless steel W.Nr.1.4301 (AISI 304) 800-1000 N/mm²;
On customer request:
- Stainless steel W.Nr.1.4310 (AISI 301) 1600-2000 N/mm²;
- Patented steel wires;
- Galvanized wires - patented steel wires and pale drawn wires...
Dimensions: on customer request in widths up to 2150 mm;

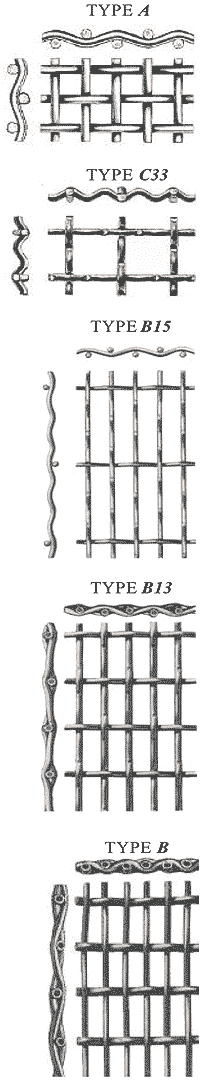

Weave types: A; B; B13; B15; B17; B19: C; C35; C37; C39;...

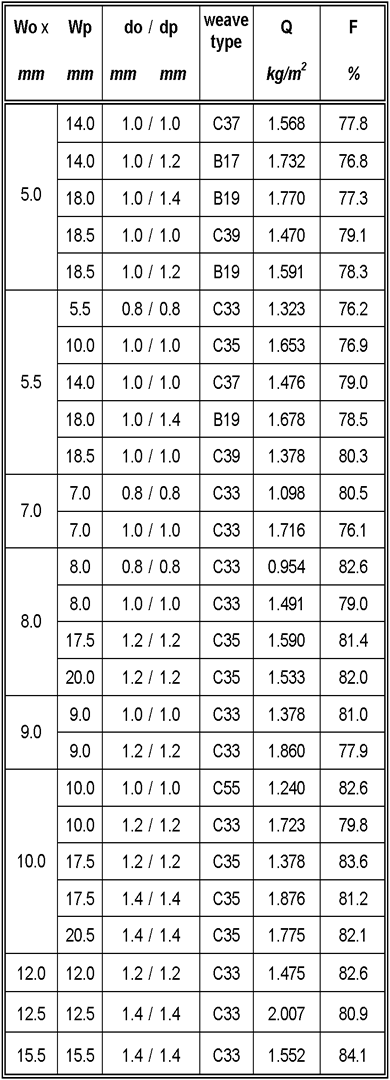

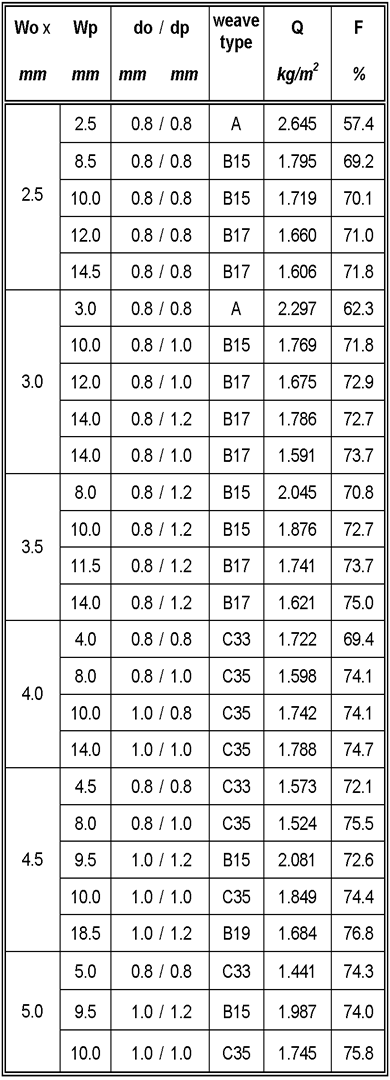

Wo – aperture by warp (mm)
Wp – aperture by weft (mm)
do – warp wire diameter (mm)
dp – weft wire diameter (mm)
to – pitch by warp (mm)
tp– pitch by weft (mm)
Q – weight (kg/m²)
F – open area (%)
t = W+d
